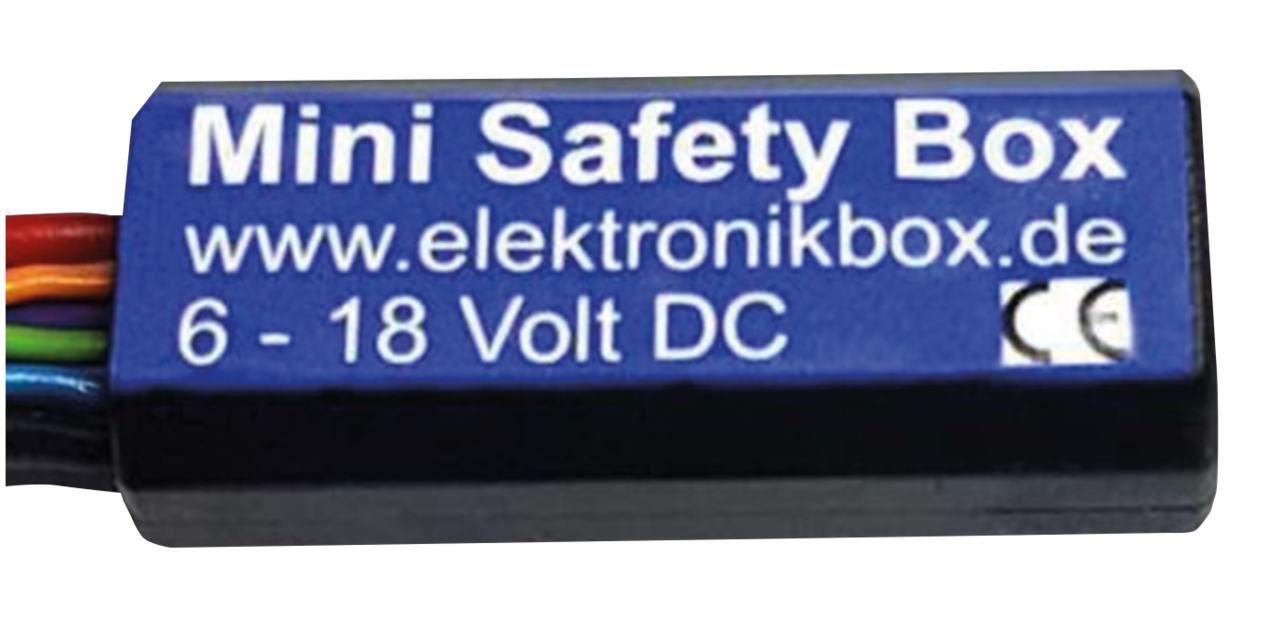

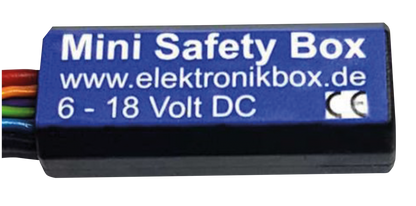

ELEKTRONIKBOX MINI SAFETY SWITCH

Elektronikbox mini safety switch

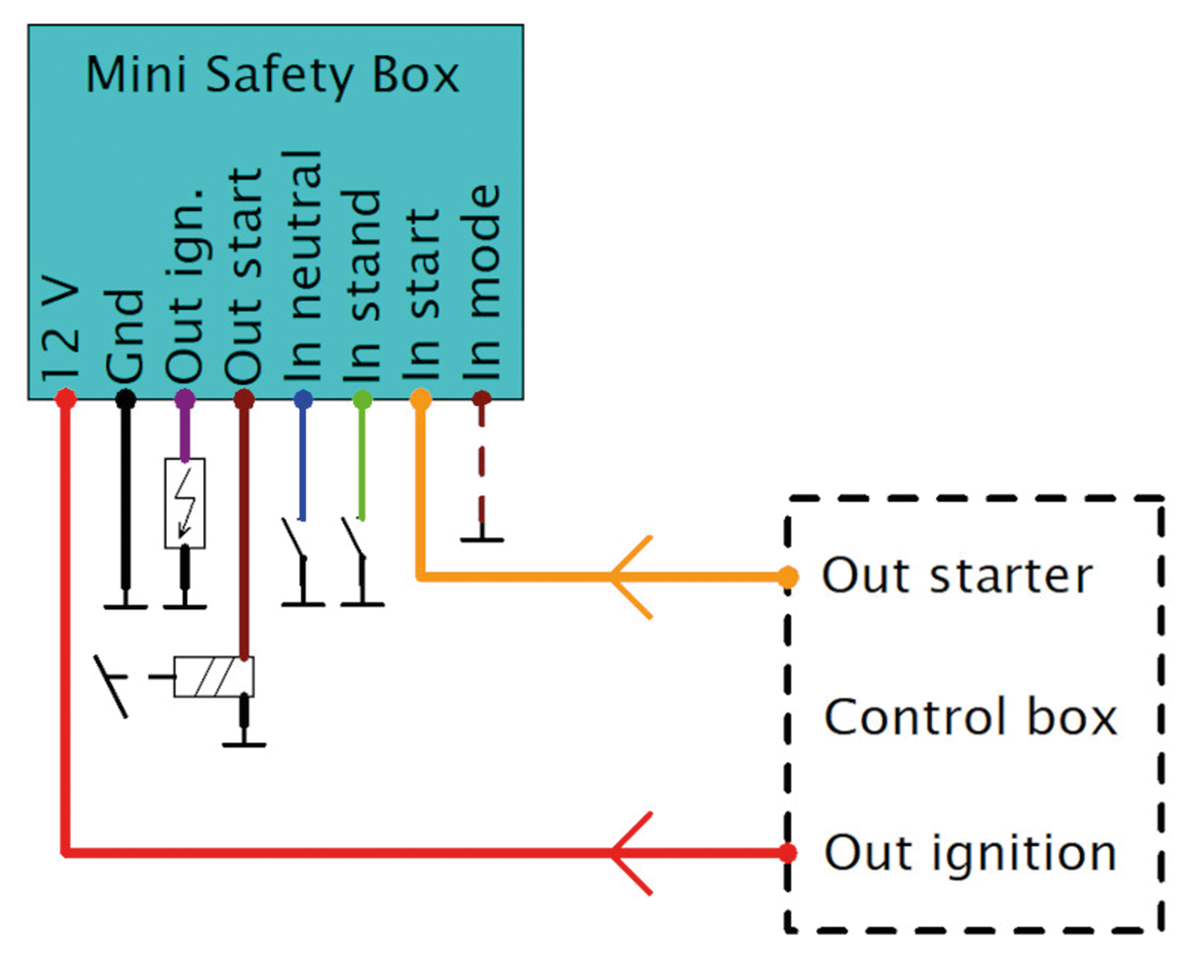

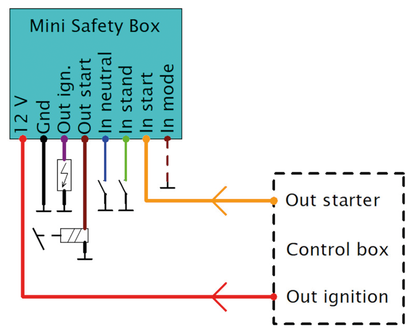

The Mini Safety Switch is a great accessory for control boxes that have no input for the neutral switch and the side stand switch. Without these inputs it is possible to start the bike when a gear is engaged or with the side stand out, which may cause very unpleasant situations. The Mini Safety Switch checks the inputs for the neutral switch and side stand security switch and enables starting the engine when the neutral switch is closed, so when it is not in gear and also not with side stand out. The ignition is switched off as long as a gear is engaged or the side stand is folded out. This waterproof encapsulated safety module is much smaller and more reliable than the traditional hand-wired solution with 2 diodes and a relay.
