ELECTRONIC SPEEDO AND TACHO COMBO

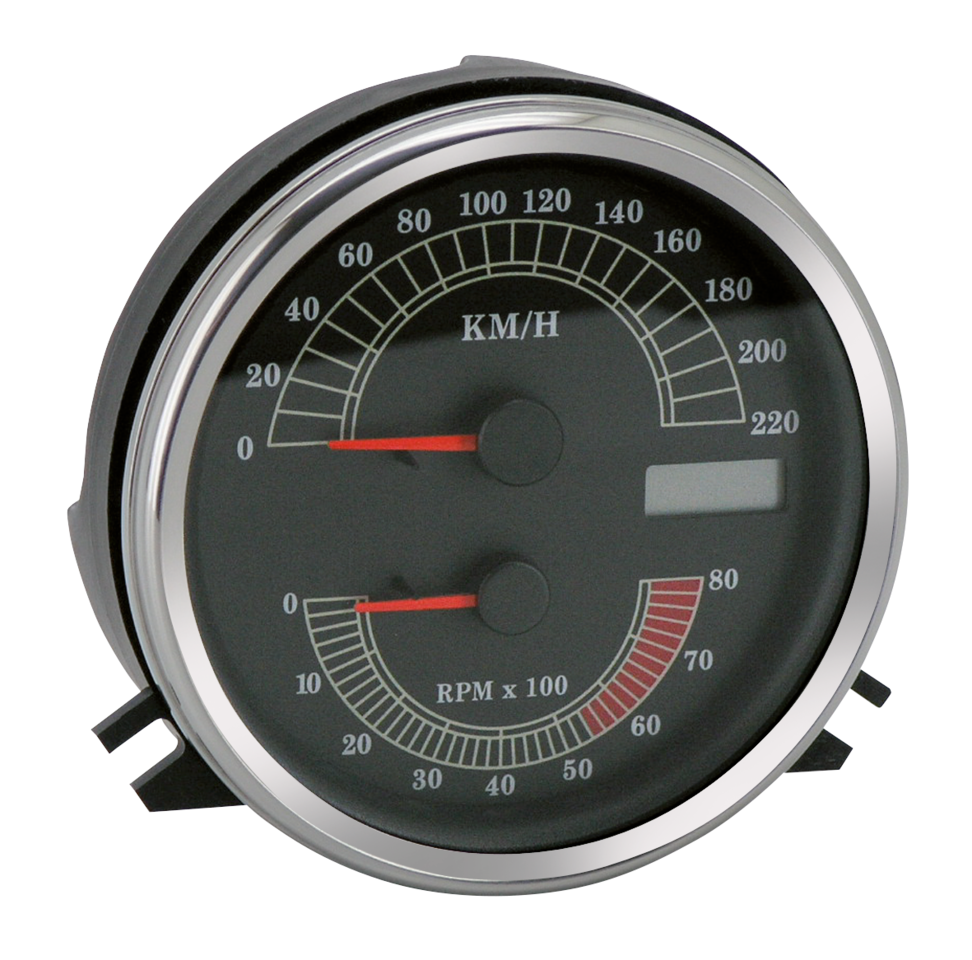

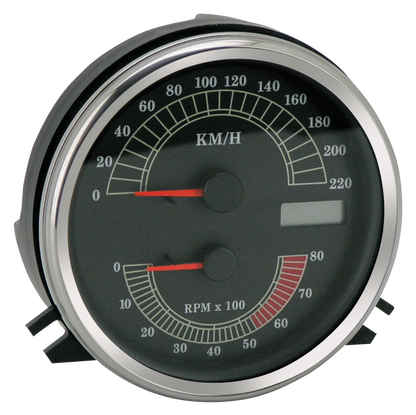

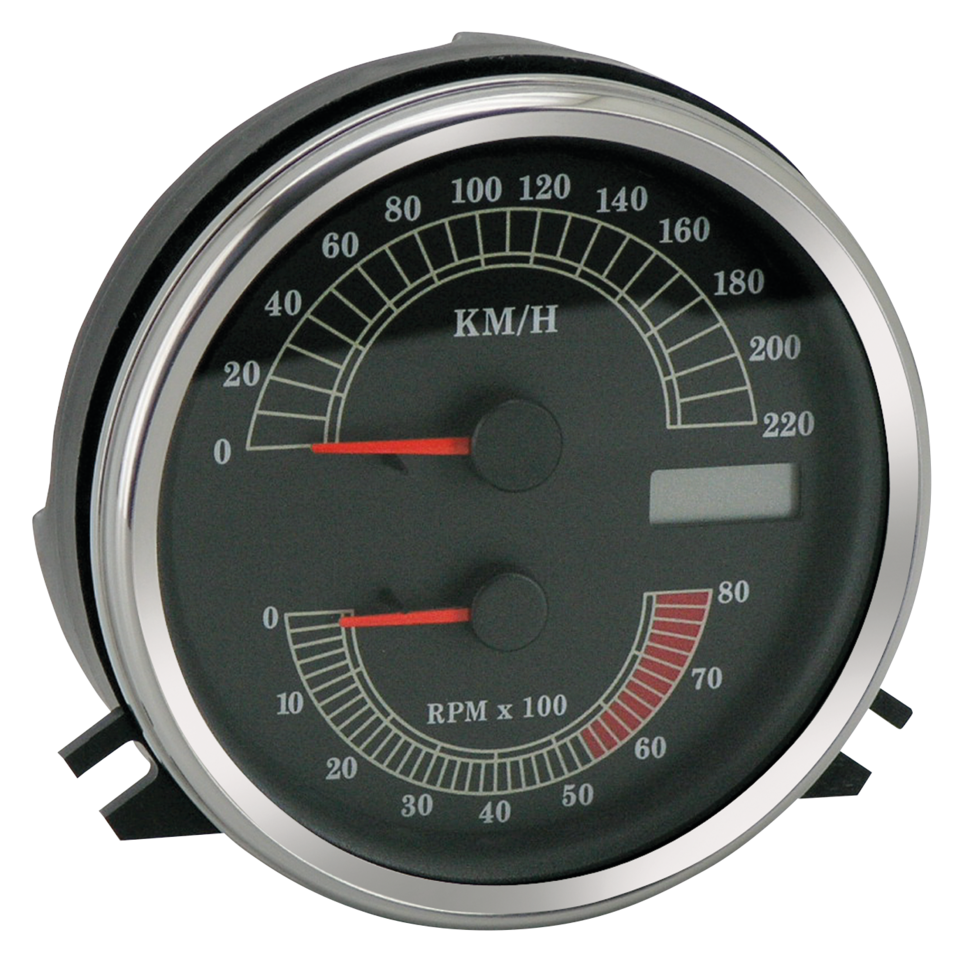

Electronic KM/H speedo and tacho combo (OEM 74471-03A)

Electronic controlled black faced speedo with built-in tacho and digital odometer for use on Big Twin and Twin Cam that are equipped with the stock transmission fitted electronic speed sensor pick up. Meter is 4 1/2" (11.5 cm) in diameter, fits stock dash and features the direct-plug in terminal as found on 1999-2003 models. Installation requires re-use of the wiring harness from the stock speedometer and crimping of our 12-pin connector kit ZPN 701626 to this. Fits FLHR Road King 1995-2003, FXDWG Dyna Wide Glide 1995-2003 and Softail 2000-2003, except FXSTD Deuce.

Note: Can also be used on Softail 1996-1999 that are converted to a 32:70 final drive ratio or when a Speedometer Calibrator ZPN 236690 or Speedometer Adjustment Unit ZPN 236986 is used.
