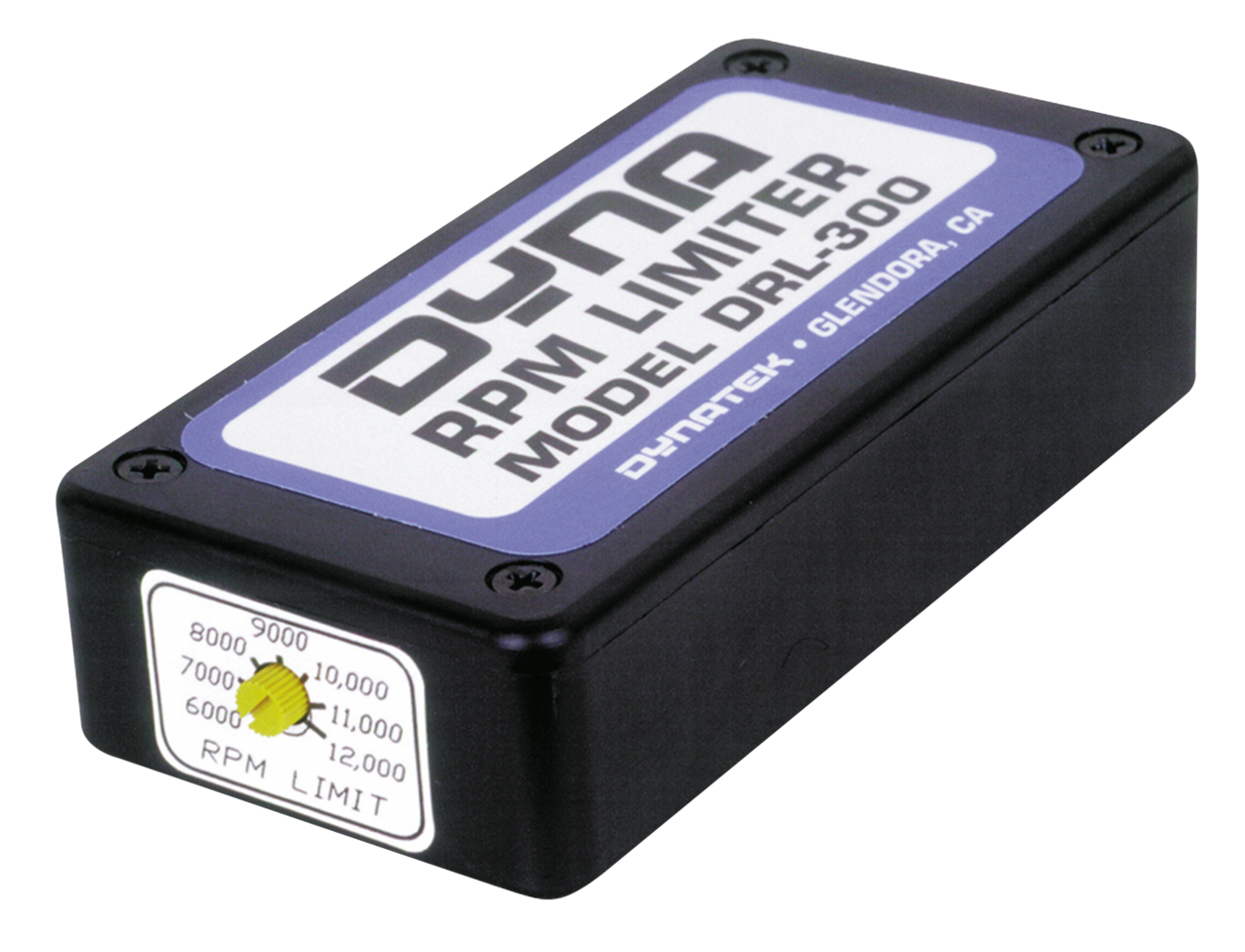

DYNA RPM LIMITER

Dyna Single stage RPM Limiter

Dyna's RPM adjustable from 6.000 to over 12.000 RPM by easy to operate dip switches. This new version of the RPM limiter has an additional output stage that works independently of the RPM limiter. The output stage can even function when the RPM limiter has no power. It works on a simple 12 Volt signal and can, for example, be used for clutchless upshifts. The Dyna RPM limiter is designed to prevent bent valves and blown engines due to overrevving or missed shifts. The limiter will work with any electronic inductive type ignition and can use up to 4 Dyna blue, low impedance coils. It does not effect engine performance until the pre-set maximum revs are reached. At that moment the spark is killed until the RPM's drop to under maximum, the spark is then re-activated.

Note: Can not be used with CDI ignition.
